Description
The HQN Running Track Sandwich System is a seamless polyurethane athletic surfacingsystem designed for professional stadiums, schools, universities, and recreational sportsfacilities. It combines an elastic SBR base layer with polyurethane coatings and a UV-resistant EPDM wearing surface to provide excellent shock absorption, durability, spikeresistance, and long-term athletic performance.
System Composition
Composite layered sports flooring solution.

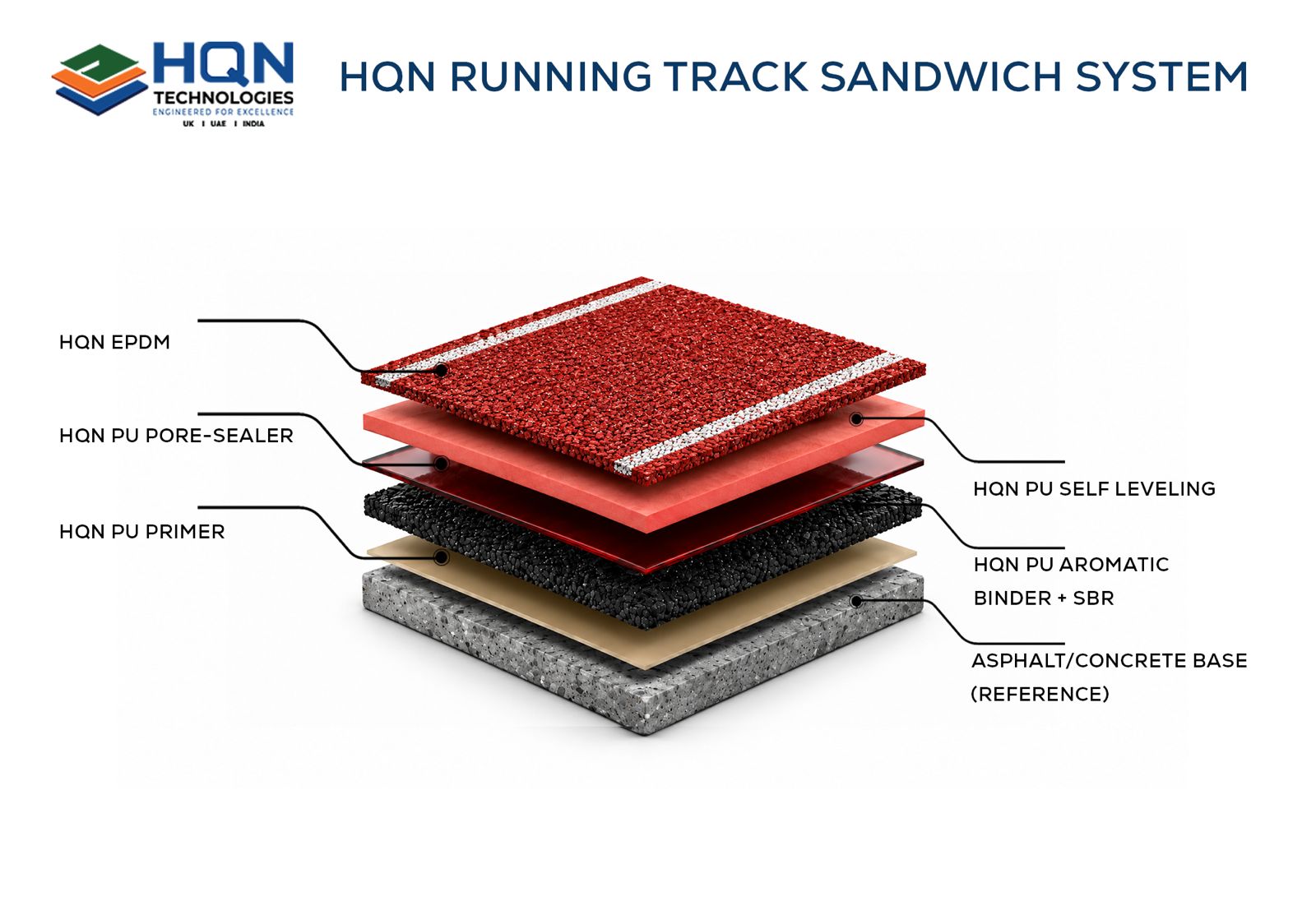

System Build-Up
| Layer | Product | Coverage |
|---|---|---|
| 1 | HQN PU Primer | 0.20–0.30 kg/m² |
| 2 | SBR Granules + HQN PU Aromatic Binder | As per specified thickness (typically 10–12 mm) |
| 3 | HQN PU Pore Sealer | 1.50–1.70 kg/m² |
| 4 | HQN PU Self Leveling | 2.50–3.00 kg/m² |
| 5 | EPDM Granules (Broadcast Finish) | 3.00–4.00 kg/m² |
Recommended Applications
Athletics Running Tracks
School & University Running Tracks
Stadium Tracks
Training Facilities
Sports Complexes
Multipurpose Athletic Areas
Key Features
• Excellent shock absorption
• High abrasion resistance
• Superior spike resistance
• UV and weather-resistant finish
• Seamless and durable surface
• Excellent slip resistance
• Comfortable running performance
• Long service life with low maintenance
Recommended Substrate
Asphalt
Concrete
The substrate should be structurally sound, clean, dry, and free from dust, oil, grease, loose
particles, and contaminants.
Application Procedure
1. Prepare and clean the substrate.
2. Apply HQN PU Primer.
3. Install the SBR granules mixed with HQN PU Aromatic Binder.
4. Apply HQN PU Pore Sealer.
5. Apply HQN PU Self Leveling (2.50–3.00 kg/m²).
6. Broadcast EPDM Granules (3.00–4.00 kg/m²).
7. Allow to cure completely.
Typical System Thickness
13–15 mm (or project specification)
Available EPDM Colours
Red, Blue, Green, Grey, Custom colours upon request
Storage
Store in unopened containers in a cool, dry place away from direct sunlight.
Disclaimer
Information is based on laboratory testing and practical experience. Actual consumption
may vary depending on substrate, application method, and site conditions. Users should
verify suitability before installation.
